PROFIBUS is essentially a data communication system that allows a relatively large number of components to share a two-core copper cable (bus system). This saves enormously in cabling and installation costs compared to conventional non-digital systems.

PROFIBUS is a digital network responsible for providing the communication between the field sensors and the control system or the controllers.

CONTACT US
Profibus Products

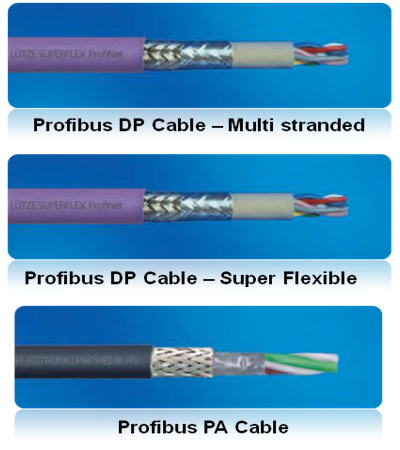

Profibus Cable

  • Profibus DP & PA Cable (Armored & Un-Armored)
  • Flexible, Multi-stranded Construction
  • Standard cable Ex stock available up to 10-20 KM
  • Various application specific cables such as Super flexible, Shipboard, FRNC, Hybrid, Trailing, Robust, Festoon, Food available under one roof.

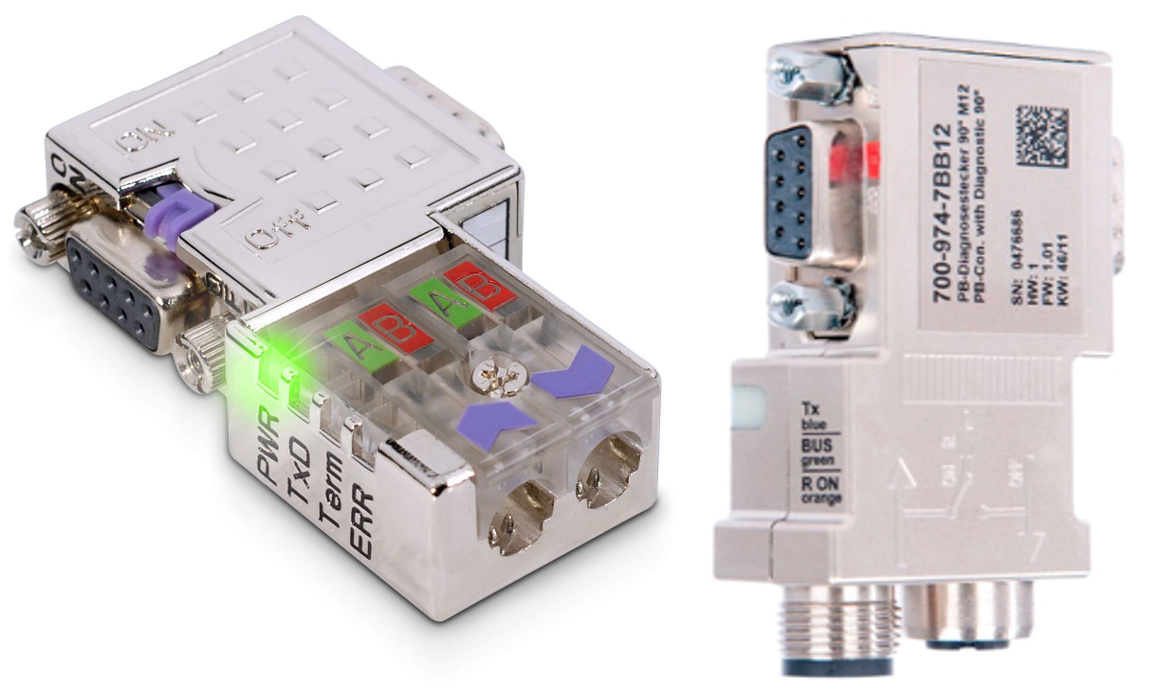

Profibus Connector

  • Integrated programming / diagnostic port
  • Integrated switchable terminating resistor
  • Full metal construction for noise immunity and harsh environment
  • Cable slots with transparent covers for high visibility
  • Comfortable IDC technology for fast and reliable wire connection.

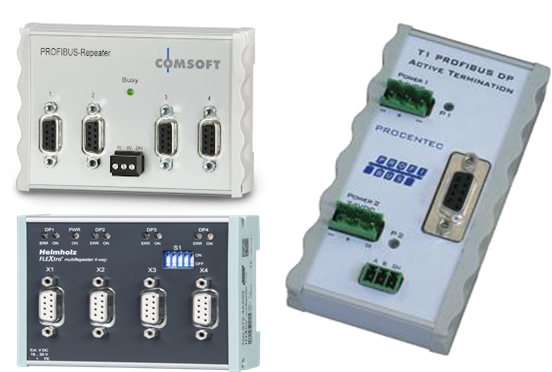

Profibus Repeater

  • Allows you to remotely monitor your PROFIBUS installations from anywhere in the world.
  • Integrated termination facilities (switches).
  • Repeater function can be deactivated
  • The PROFIBUS Repeater supports four PROFIBUS segments simultaneously.
  • Plug-and-play operation without configuration

Profibus Terminator

  • Bus termination independent of terminal device due autonomous power supply
  • Power supply independent of bus nodes
  • Repeater function can be deactivated
  • Diagnostic LEDs to indicate the status of the power supply
  • Supports all PROFIBUS RS 485 protocols

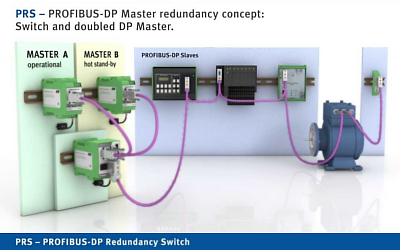

Profibus Master Redundancy Switch (PRS)

  • Top-hat rail based switch for the implementation of redundant PROFIBUS DP Master systems.
  • Allows the connection of two identical DP Masters to the DP Slaves.
  • Avoids galvanic contact between the DP Masters
  • Masters be configured with identical PROFIBUS addresses, making Multi Master mode unnecessary and excludes double address conflict.

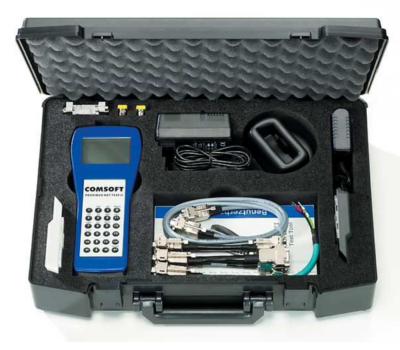

Profibus Diagnostic Tool

  • Analyzer, Oscilloscope, Bar graph, Topology scan, Quality factor, CommDTM, OPC, Automatic testing, Reporting
  • DP Master, USB Powered Device, Galvanic isolated Profibus interface
  • Troubleshooting and maintains of Profibus network,
  • Commissioning of Profibus network
  • Address setting of Profibus devices
