Industrial Network Devices

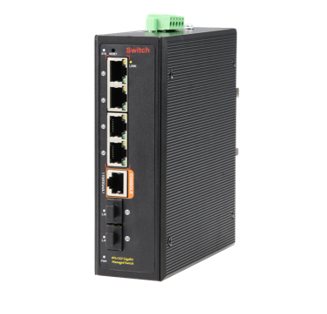

IND-D-M-FG-0402-N

The IND-D-M-FG-0402-N is a full Gigabit managed industrial Ethernet switch. it has 4*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding. The IND-D-M-FG-0402-N has the L2+ full network management function, IPV4/IPV6 management, software/static route forwarding, security protection mechanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and aintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability.

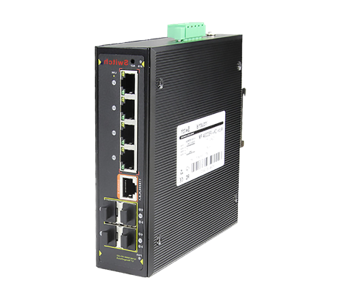

IND-D-M-FG-0404-N

The IND-D-M-FG-0404-N series is a full gigabit L2+ managed industrial Ethernet fiber switch. It has 4*100/1000Base-X SFP fiber slot ports and 4*10/100/1000Base-T RJ45 ports. Each port can support wire-speed forwarding. The IND-D-M-FG-0404-N has the L2+ full network management function, IPV4/IPV6 management,software/static route forwarding, security protection echanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-TG.8032) ERPS(<20ms) to improve link backup and network reliability.

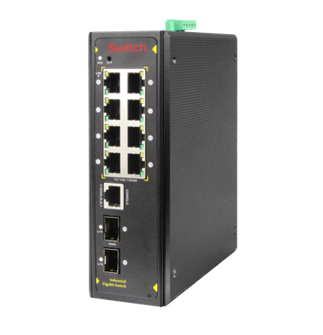

IND-D-M-FG-0802-N

The IND-D-M-FG-0802-N series is a full gigabit L2+ managed industrial Ethernet fiber switch. It has 2*100/1000Base-X SFP fiber slot ports and 8*10/100/1000Base-T RJ45 ports. Each port can support wire-speed forwarding. The IND-D-M-FG-0802-N has the L2+ full network management function, IPV4/IPV6 management, software/static route forwarding, security protection mechanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-TG.8032) ERPS(<20ms) to improve link backup and network reliability.

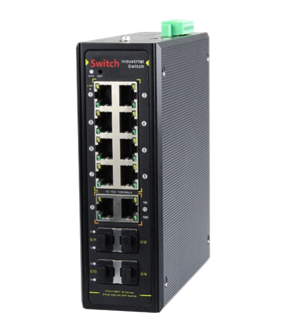

IND-D-M-FG-1004-N

The IND-D-M-FG-1004-N series is a full gigabit managed industrial Ethernet fiber switch. It has 10*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber ports. Each port can support wire-speed forwarding. The IND-D-M-FG-1004-N has L2+ network management function, supports IPV4/IPV6 management, supports static route forwarding, complete security protection mechanism, ACL/QoS policy, and VLAN function, and is easy to manage and maintain.

IND-D-M-FG-1204-N

The IND-D-M-FG-1204-N is a full gigabit managed industrial Ethernet switch. It has 12*10/100/1000M RJ45 ports and 4*100/1000M SFP port slots. it can support L2+ full network management function, IPV4/IPV6 management, rich network management features, and complete network security policy configuration, it is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy construction.

IND-D-M-FG-1608-N

The IND-D-M-FG-1608-N is a full gigabit L2+ managed industrial Ethernet fiber switch. It has it has 16*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding. The IND-D-M-FG-1608-N has L2+ network management function, support IPV4/IPV6 management, static route full line-rate forwarding, security protection mechanism, ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.

IND-D-M-FG-2004-N

The IND-D-M-FG-2004-N is a full gigabit L2+ managed industrial Ethernet fiber switch. it has 20*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding. The IND-D-M-FG-2004-N has L2+ full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.

IND-D-U-E0-0600-N

The IND-D-U-E0-0600-N is a 10/100M industrial Ethernet switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 6*10/100/1000M RJ45 ports. Each port can support full line-rate forwarding. IND-D-U-E0-0600-N industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40,

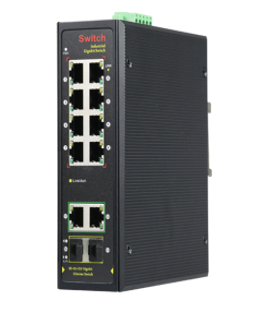

IND-D-U-EG-1002-N

The IND-D-U-EG-1002-P\N is a gigabit uplink industrial Ethernet fiber switch. It has 8*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*1000M SFP ports, and each port can support full line-rate forwarding. The IND-D-U-EG-1002-N industrial Ethernet switch has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). Protection level is IP40, it support for dual power supply, low power consumption, No fan.

IND-D-U-FG-0202-N

The IND-D-U-FG-0202-N is a full gigabit industrial Ethernet fiber switch. It is designed to meet industrial fields and systems. It has 2*10/100/1000Base-T RJ45 ports and 2*1000Base-X SFP fiber slot ports. Each port can support full line-rate forwarding. IND-D-U-FG-0202-N industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, support for dual redundant power supply, low power consumption and fanless cooling technology.

IND-D-U-FG-0600-P

The IND-D-U-FG-0600-P series is a full gigabit industrial PoE switch. It has 6*10/100/1000Base-T RJ45 ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.

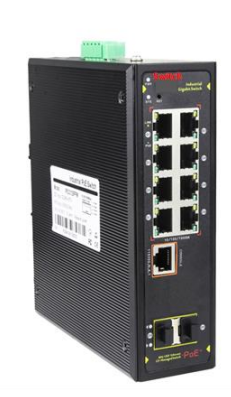

IND-D-U-FG-1002-P/N

The IND-D-U-FG-1002-P/N series is a full gigabit industrial PoE fiber switch. It has 10*10/100/1000Base-T RJ45 ports and 2*1000Base-X uplink SFP slot ports. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply.

IND-R-LM-FG-2404-N

The IND-R-LM-FG-2404-N is a full gigabit managed industrial Ethernet fiber switch. It has 24*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.The IND-R-LM-FG-2404-N has L2+ full network management function, supports IPV4 management, static route full line rate forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.

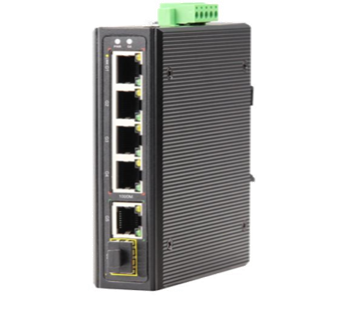

IND-D-U-FG-0501-N

The IND-D-U-FG-0501-N is a full gigabit industrial Ethernet fiber switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. The IND-D-U-FG-0501-N has 5*10/100/1000M adaptive RJ45 ports and 1*1000M SFP fiber slot port, Each port can support full line-rate forwarding.

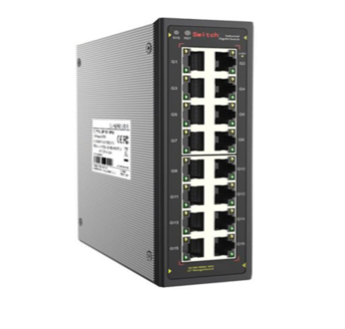

IND-D-M-FG-1600-N

The IND-D-M-FG-1600-N is a full gigabit L2+ managed industrial Ethernet switch. It has 16*10/100/1000Base-T RJ45 ports. Each port can support wire-speed forwarding. The IND-D-M-FG-1600-N has L2+ network management function, support IPV4/IPV6 management, static route full line-rate forwarding, security protection mechanism, ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability.

IND-D-LM-FG-0802-N

The IND-D-LM-FG-0802-N is a full Gigabit L2+ managed industrial Ethernet fiber switch. It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber ports. Each port can support wire-speed forwarding. The IND-D-LM-FG-0802-N has the L2+ full network management function, IPV4 management, static route forwarding, security protection Mechanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability.

IND-D-LM-FG-0802-P

The IND-D-LM-FG-0802-P is a full Gigabit L2+ managed industrial Ethernet fiber switch. It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber ports. Each port can support wire-speed forwarding. The IND-D-LM-FG-0802-P has the L2+ full network management function, IPV4 management, static route forwarding, security protection Mechanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability.

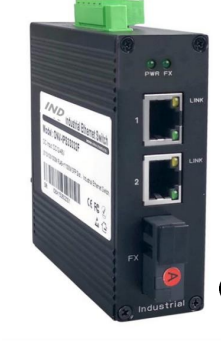

IND-D-U-FG-21FSS-SC

The IND-D-U-FG-21FSS-SC is a full gigabit industrial Ethernet fiber switch. It has 2*10/100/1000Base-T RJ45 ports and 1*1000Base-X SC single-mode dual-fiber optical module (optional single-mode/multi-mode, single-fiber/dual-fiber optical module). Each port can support full line-rate forwarding.IND-D-U-FG-21FSS-SC industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40.

IND-D-U-FG-21FMM-SC

The IND-D-U-FG-21FMM-SC is a full gigabit industrial Ethernet fiber switch. It has 2*10/100/1000Base-T RJ45 ports and 1*1000Base-X SC single-mode dual-fiber optical module (optional single-mode/multi-mode, single-fiber/dual-fiber optical module). Each port can support full line-rate forwarding.IND-D-U-FG-21FMM-SC industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40.

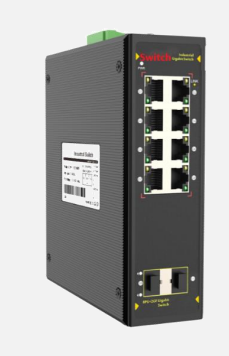

IND-D-U-FG-0802-N

The IND-D-U-FG-0802-N is a full gigabit industrial Ethernet fiber switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 8*10/100/1000M adaptive RJ45 ports and 2*1000M SFP fiber slot ports. Each port can support full line-rate forwarding. IND-D-U-FG-0802-N industrial Ethernet switch has excellent industrial field environment adaptability, protection level up to IP40.
